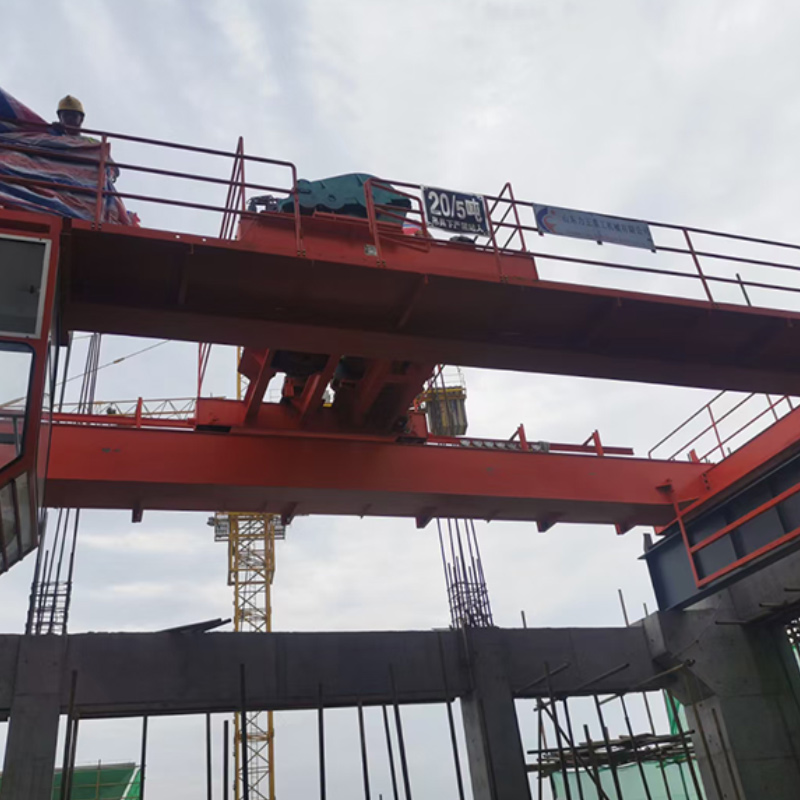

double girder overhead crane

LB type electric double girder crane is applicable to the workshop of smelting aluminum, magnesium and other electrolytic non-ferrous metal materials. The crane is composed of box bridge, crane running mechanism, trolley and electrical equipment. In order to prevent the current on the live equipment from being transmitted to the crane through the lifted components during the working process, endangering the driver’s life and equipment, several insulation devices are set at the appropriate parts of the crane. This crane is a heavy duty system. To ensure lifting, the main lifting mechanism is equipped with double brakes. All mechanisms are operated in the cab.

(1) The bridge adopts box girder, which is welded by automatic submerged arc welding.

(2) The trolley adopts a new conductive device of I-steel track cable, which is reliable.

(3) The lifting mechanism can also be equipped with another set of devices according to requirements. Increase reliability.

(4) Standardization, serialization and generalization of parts.

(5) The control room has a wide field of vision, all mechanisms are operated in the control room, and the operation is flexible.

parameter：

Mechanism		Item	Unit	Result
Item
Lifting capacity			ton	5-320ton
Working grade				A3-A5
Span			m	5-40m
Working environment temperature			°C	-25~40
Travelling mechanism	working speed		m/min	20-75
	motor	type		YZR160M2
		power	kw	2*0.8	2*1.5
		rotational speed	m/min	1380
Lifting mechanism	lifting speed		m/min	8/0.8(7/0.7) 3.5(3.5/0.35) 8(7)
	lifting height		H(m)	6 9 12 18 24 30
	travelling speed		m/min	20 30
working system			A3-A5
power source			380V 3PH 50HZ
